Used GE KrautKramer USN58L

GE KrautKramer USN58L

GE KrautKramer USN58L

GE KrautKramer USN58L the transflective (i.e. contrast by external light) color LCD is the optimum choice for use in a bright environment. Even with direct sunlight, the display is still easily readable – an advantage that every operator will appreciate in field applications. New digitizing and signal processing methods as well as a display refresh rate of 60 Hz have added another highlight to this instrument: with its very fast display refresh, the USN 58L makes up for the lead in display speed that analog instruments previously had.

Proven performance features

of the successful Krautkramer instruments USN 50/52 were adopted or further improved:

Calibration range from 1 mm to 12 m for minimum and maximum sized workpieces
Large frequency range from 0.25 to 25 MHz for optimum probe matching
Pulse repetition frequency from 15 to 2000 Hz, automatically linked with the calibration range or manually adjustable
2-point calibration: easy, fast, and very accurate
Material tables with 65 sound velocities stored in the instrument

Even for demanding applications

Besides the powerful ultrasonic features, the USN 58L has other specialities available to extend its application range:

Real-time outputs: analog and TTL outputs for the requirements of automatic test systems
“SmartView” function: maximum flaw detectability even at high scanning speeds
Reliable display of even shorter signals (e.g. from only one transmit/ receive cycle) by adjustable persistence.
Easy operation, thanks to the two rotary knobs, is combined with an intuitive menu layout.

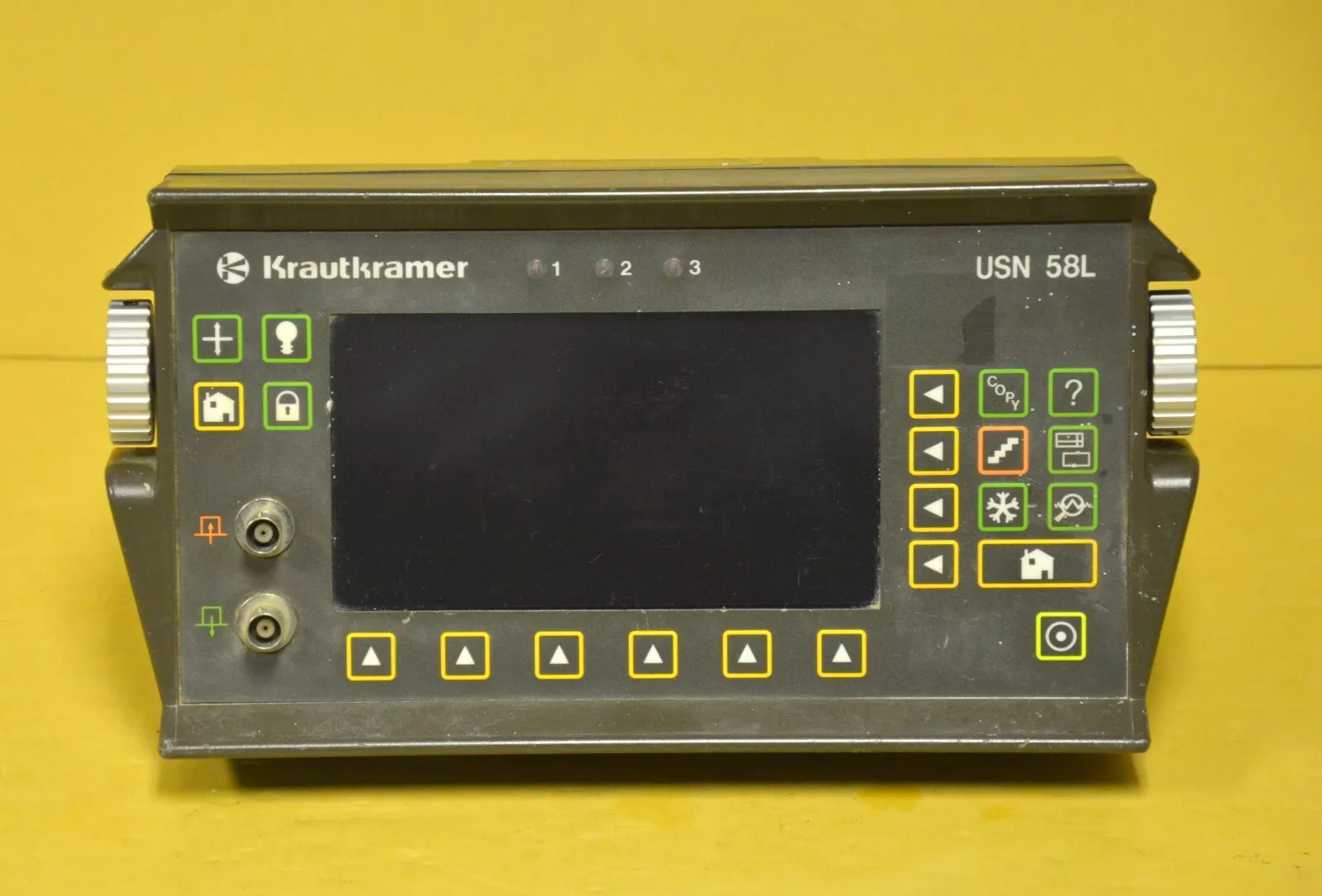

GE KrautKramer USN58L Ultrasonic Flaw Detector Thickness Gauge

Installed Options:
– SQPLS

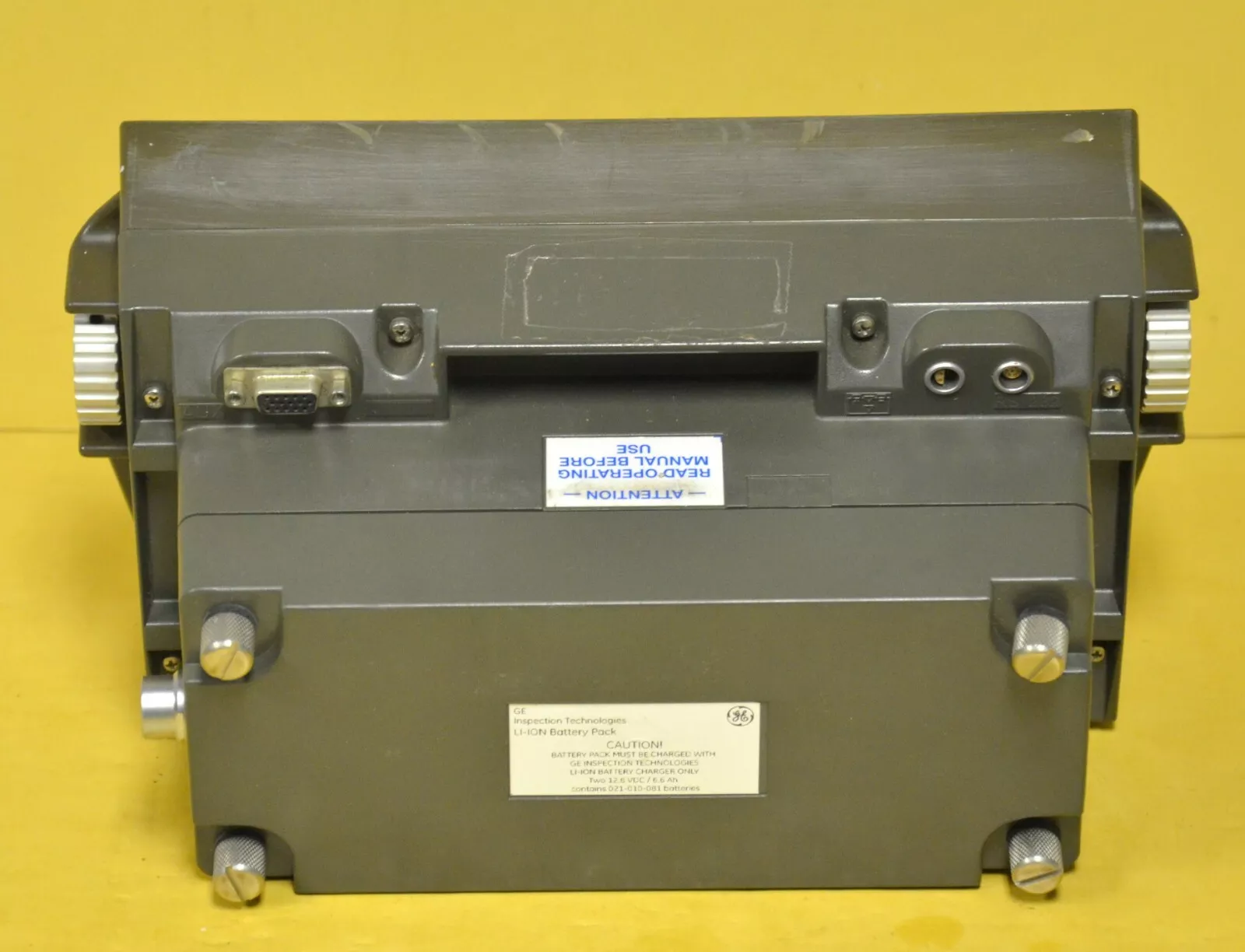

– VGA Output

USN 58L features the transflective (i.e. contrast by external light) color LCD screen that even with direct sunlight, the display is still easily readable – an advantage that every operator will appreciate in field applications.

INCLUDED :

Krautkramer USN58L Ultrasonic Flaw Detector w/ Options: (BC# 38869-L/T*)
SQPLS
VGA Output Option (USN 58L Only)
(2) BNC Cables
Alkaline Battery Pack
User Manual On CD-ROM
