PicoLO Picosecond 1064nm & 532nm

PicoLO Picosecond ( 2019 )

PicoLO Picosecond Laser Tattoo Removal Machine works by sending ultra-short pulses of energy without heat to targeted problem areas. Wavelength 1064nm 532nm 755nm Pico laser machine impact on the skin is intense, shattering the problem skin pigment or particles. These are then eliminated naturally by the body.

Laser Tattoo Removal Machine Include four heads
1064nm&532nm&1320nm&755nm Head
Black, blue, ink, brown, orange etc all colour tattoo removal
Chloasma, Dermis spot, age pigment,birthmark and Nevus of Ota etc pigmentation removal
Laser Carbon Peeling
Embroider lip tattoo,soak lip tattoo,embroider eye line tattoo and lip line tattoo removal

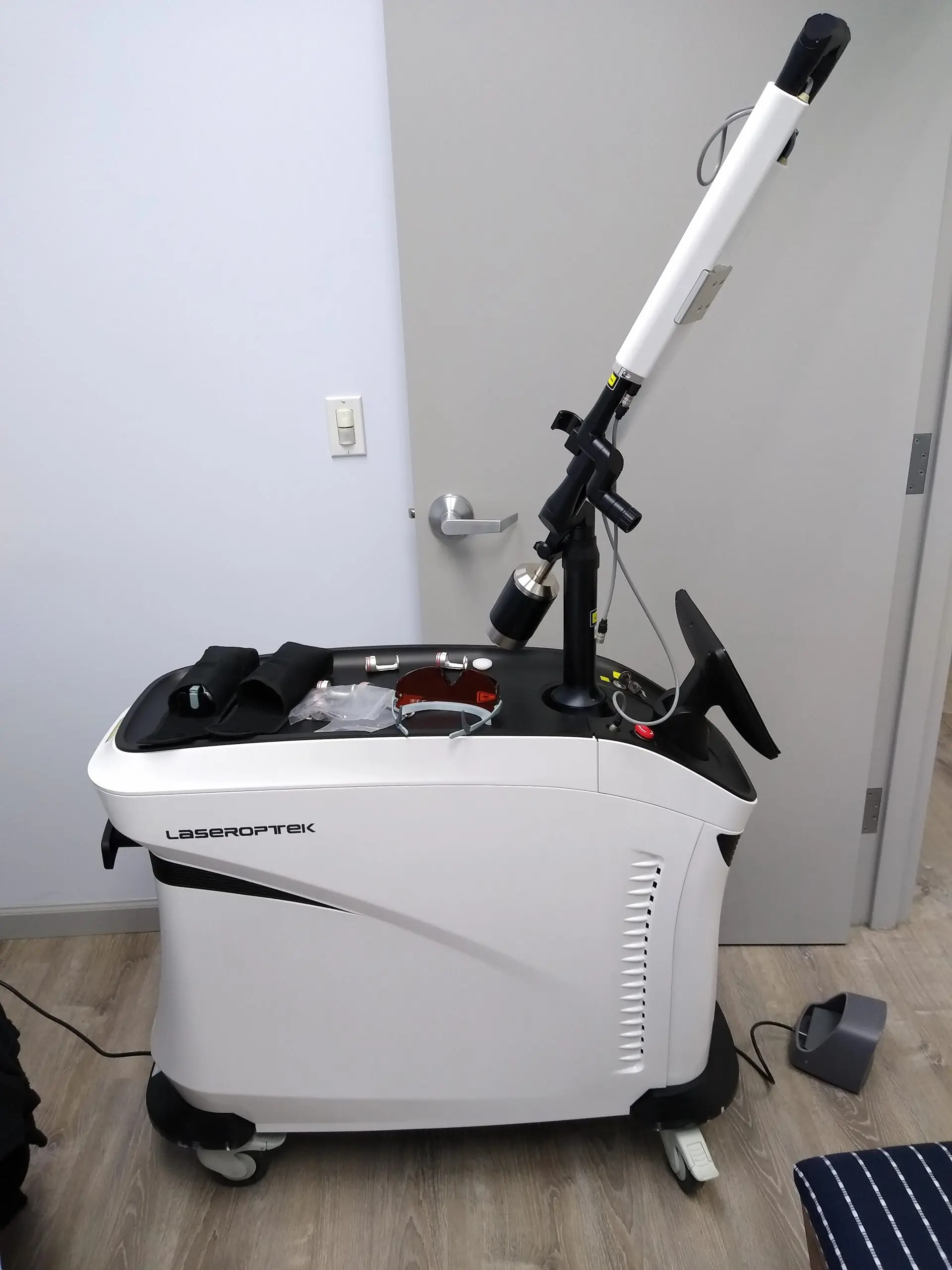

Light guide arm 360 treatment without dead angle and ensure the highest energy output minimum energy loss during laser transmission
2-10mm adjustable spot size
Single pulse mode&Double pulse mode optional, Different energy ensure excellent treatment result.
Korea Imported Aiming beam, Low maintenance and optical loss, high stability and long lifetime

Q: What’s your quality guarantee for machine?

We offer 2 years warranty and lifetime maintenance and 24/7 after sales service

Q: What’s your payment terms?

You can pay by T/T bank transfer, Western Union or Credit card via Alibaba Trade Assurance

Q: What’s your delivery time/lead time?

Normally it needs 6-8 working days.

Handpieces:

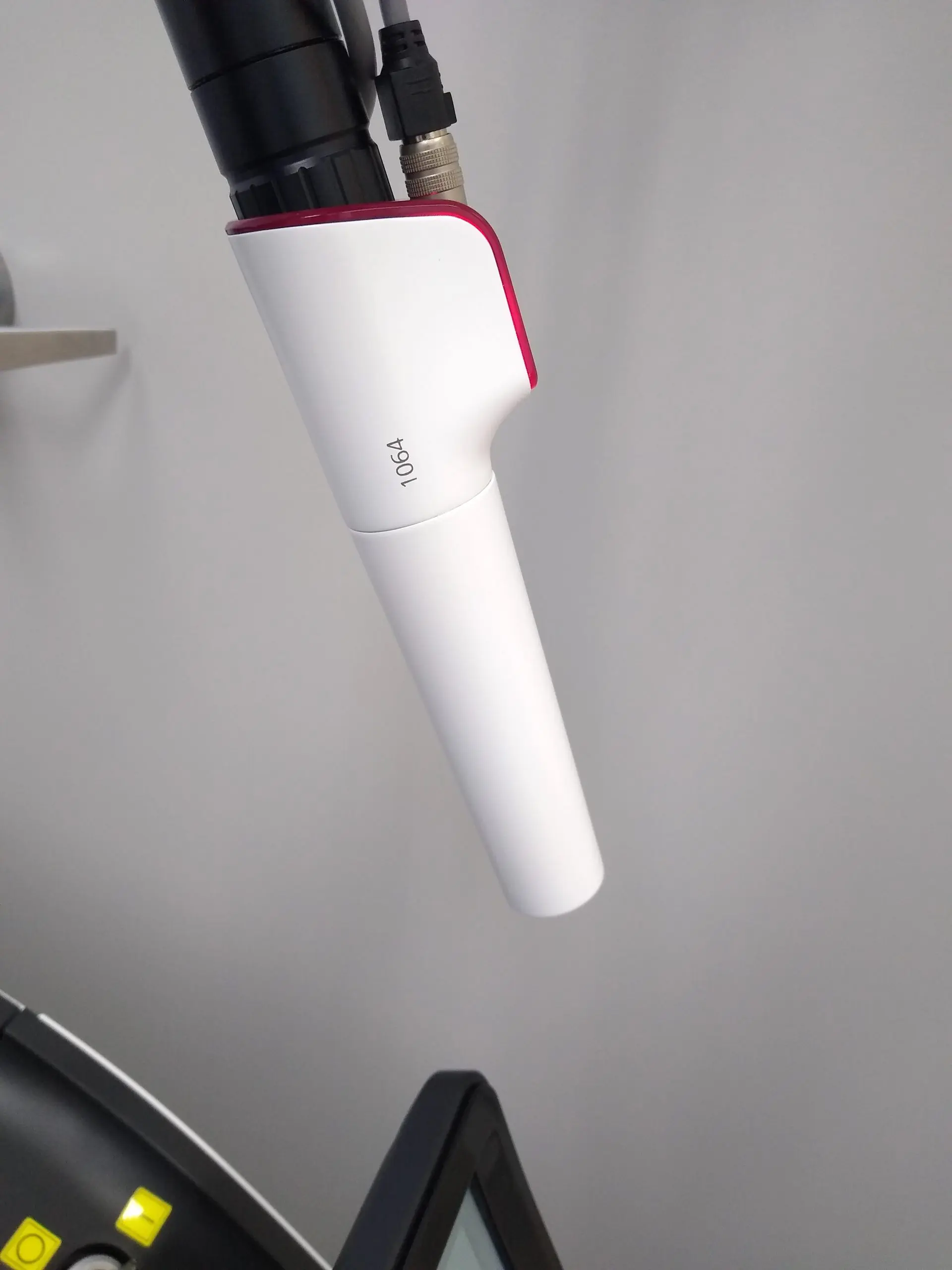

1064 Fractional – Spot Size 10 x 10 mm
532 Fractional – Spot Size 7 x 7 mm
Collimator 1064nm & 532nm – Spot Size 20 x 20 mm

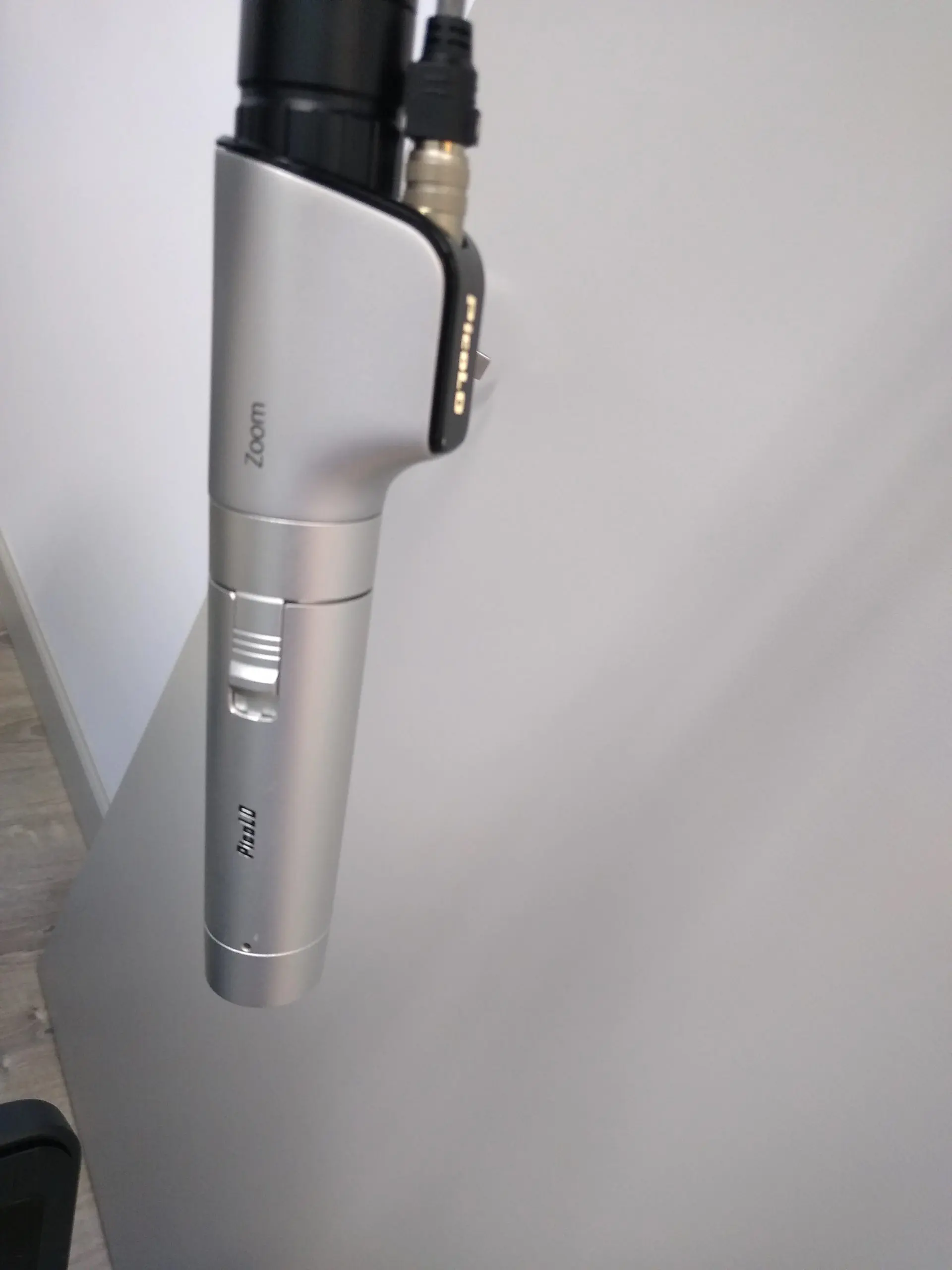

Zoom 1064nm & 532nm – Spot Size 2 – 7 mm

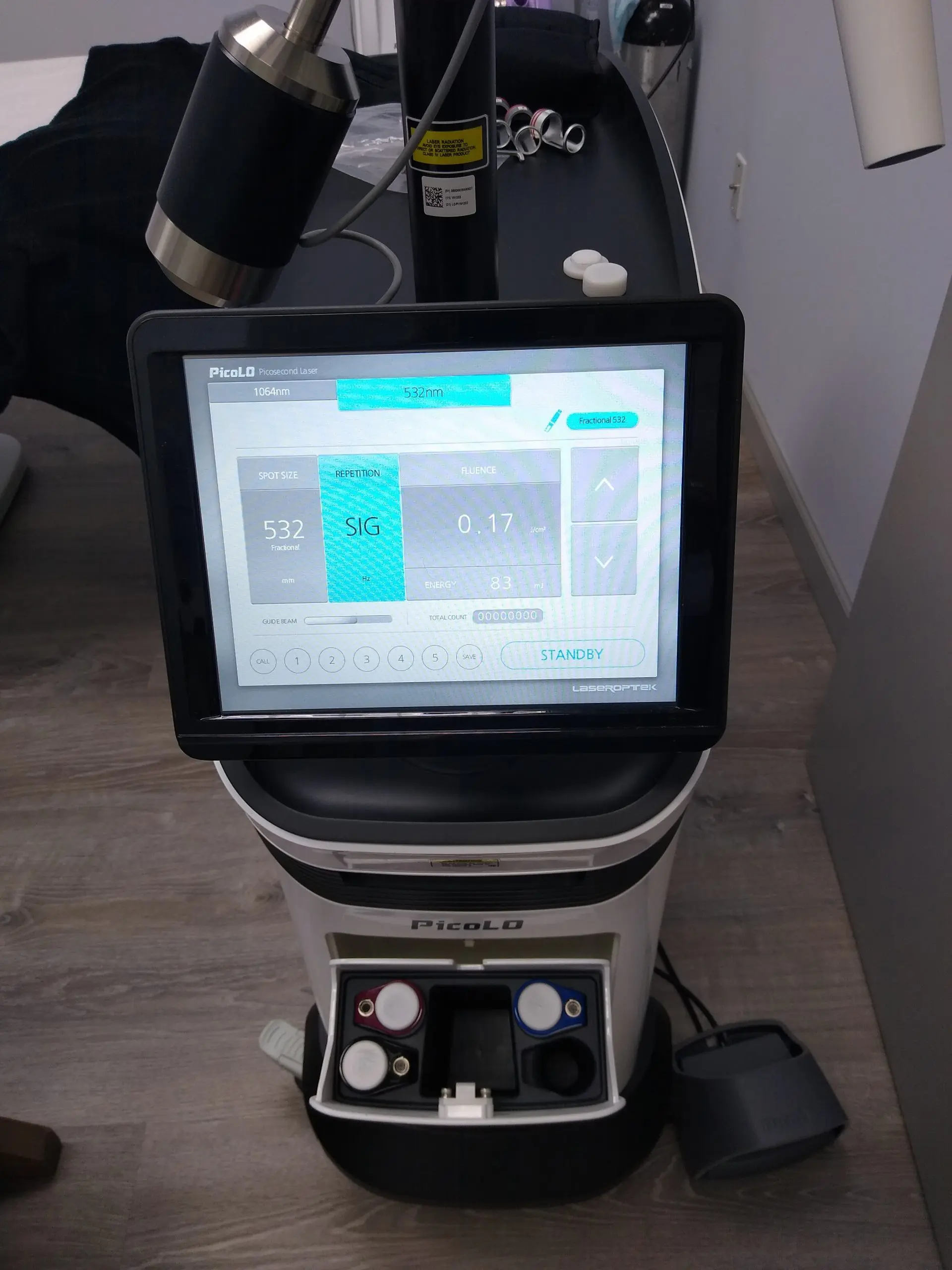

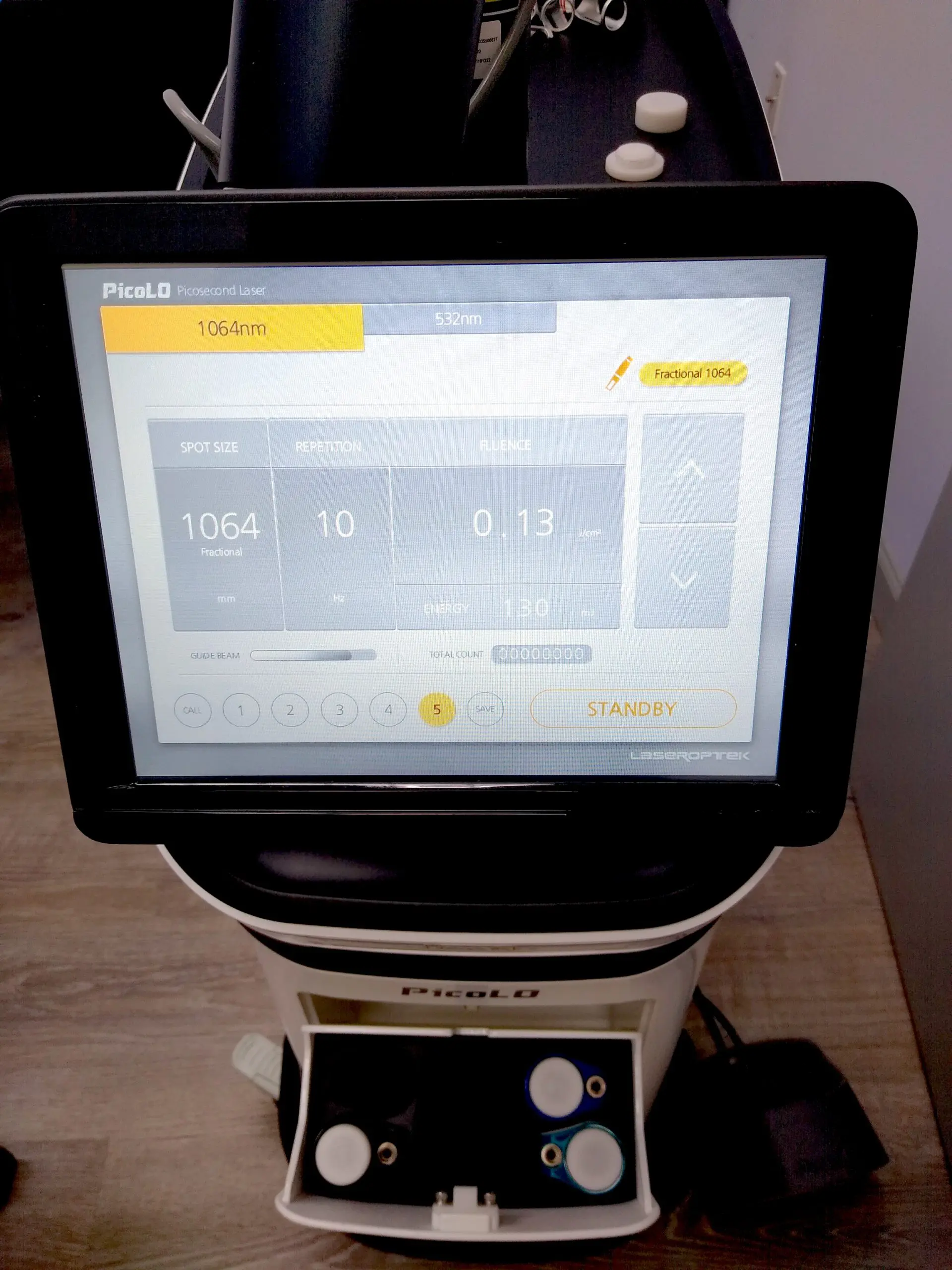

Display: 10.4

Stability Parameters

1064nm – Mean: 469.85ps, Min: 457.17ps, Max: 480.34ps, Range 23.17ps, Std Dev: 11.74ps, (2.5%);

532nm – Mean: 404.47ps, Min: 403.41ps, Max: 405.52ps, Range: 2.11ps, Std Dev. 1.49ps, (0.3%);

PicoLO MANUFACTURER NOTES

Genuine Picosecond Laser Technology

Technically advanced and genuine picosecond pulsed Nd:YAG laser with dual wavelengths at 1064nm & 532nm, designed to efficaciously treat multiple indications including tattoo removals, scar corrections, and promoting skin rejuvenation.

The PicoLO impresses users with its sleek and compact design and patients by minimizing discomfort, pain, side effects, and downtime. The large spot size options allow more customized and efficient treatments equally benefitting both end-users.

Stability Determines The Results

Stability is the key factor to deliver optimal results based on conditions of output energy and pulse durations for both wavelengths 1064nm and 532nm. The arduously tested stability of the PicoLO has been proven to induce LIOB even at low fluences, which sets the system apart from other picosecond Nd:YAG lasers.

Photomechanical Effect

Picosecond technology is rapidly becoming the gold standard for a variety of treatment indications such as tattoo removal and skin rejuvenation due to its superiority in comparison with Q-Switched Nd:YAG nanosecond based lasers.

Utilizing the photomechanical effect to shatter tattoo ink particles, PicoLO patients report quicker recovery times and fewer treatments necessary for high patient/physician satisfaction. Picosecond Nd:YAG pulse durations are approximately 10 times shorter in comparison with nanosecond Q-switched Nd:YAG laser technology, and also has the advantage of a reduction in epidermal injuries and minimizing unwanted thermal damage from occurring.

DOE Fractional Technology

PicoLO handpieces are equipped with LASEROPTEK’s proprietary DOE Fractional Technology which is a generated fractional grid pattern for application in aesthetic laser treatments. This technology provides uniform fluence, ablation/penetration depth, safety and even distribution of energy.

Multiple Depth LIOB

The PicoLO 1064 Fractional Handpiece with the switch of a tip targets three different depths for a more result-oriented treatment, triggering Laser Induced Optical Breakdowns which create micro-injury zones in order to stimulate a healing process to promote skin rejuvenation. Physicians now have the ability to create LIOB in the dermis, upper dermis, and epidermis for enhanced results.

Treatment Indications

With the combination of both wavelengths, the PicoLO conveniently covers a wide array of treatment indications including:

Tattoo removals
Pigmentations
Scar correction
Skin rejuvenation

Designed For Convenience

Depending on the treatment indication and target region the recommended spot size is selected when moving forward with treatment mapping. Physicians require a customizable range of spot sizes and the PicoLO offers anywhere between 2mm to 20mm allowing maximum convenience when you require it.

procedures with low or no downtime at all.
