Used Trimble TX8

Trimble TX8

Trimble TX8 3D HIGH-QUALITY DATA: quickly capture superior data even in bright sunlight. Be confident you will get the quality data you need with fewer setups to complete the project. Trimble TX8 3Dcreate for geospatial professionals who need improved versatility and ranges to efficiently support an assortment of programs in urban surroundings, civil infrastructures and challenging terrains.

Spesification
Overview
Scanning principle: Vertically rotating mirror on horizontally rotating base
Range principle: Ultra-high speed time-of-flight powered by Trimble Lightning technology
Scanning speed: 1 million pts/sec
Maximum range: 120 m on most surfaces 340 m with optional upgrade
Range noise: <2 mm on most surfaces with Standard scan modes <1 mm with High Precision scan mode2
Range measurement
Laser class: 1, eye safe in accordance with IEC EN60825-1
Laser wavelength: 1.5 µm, invisible
Laser beam diameter: 6–10–34 mm @ 10–30–100m
Minimum range: 0.6 m
Max. standard range: 120 m on 18–90% reflectivity 100 m on very low reflectivity (5%)
Extended range1: 340 m
Range noise: <2 mm from 2 m to 120 m on 18–90% reflectivity in Standard modes; <1 mm from 2 m to 80 m on 18–90% reflectivity in High Precision mode
Range systematic error: <2 mm
Scanning
Field of view: 360° x 317°
Angular accuracy: 80 µrad
Imaging
Integrated HDR camera: 10 megapixel resolution, full field of view
Image capture duration: 1 min for Standard, 2 min for HDR, External camera kits are available for higher resolution HDR images
Others
Touchscreen display: TFT-LCD with 24-bit color
Size (mm): 93 (H) x 55.8 (V), equivalent 4.3” diagonal
Resolution: 800 x 480 (WVGA)
Luminance resolution: 8 bits
Leveling: External bubble, onboard electronic bubble
Dual axis compensation: Selectable on/off
Resolution: 0.3”
Range: ±5’
Accuracy: 1”
Data storage: USB 3.0 Flash Drive
Remote control: Operate with Trimble tablet or other mobile device via WLAN or with Windows 7 or higher PC or tablet via USB cable4
Physical
Dimensions: 335 mm W x 386 mm H x 242 mm D (13.2 in W x 15.2 in H x 9.5 in D)
Weight: 10.7 kg (23.6 lb) with tribrach and no battery; 11.2 kg (24.7 lb) with tribrach and battery
Power supply: 76 mm W x 43 mm H x 130 mm D (3.0 in W x 1.7 in H x 5.1 in D);
Weight: 0.66 kg (1.46 lb)
Battery dimensions: 89.2 mm W x 20.1 mm H x 149.1 mm D (3.5 in W x 0.8 in H x 5.9 in D)
Battery weight: 0.46 kg (1 lb)
Power consumption: 72 W
Scan time per battery: >2 hours
Instrument case: 500 mm W x 366 mm H x 625 mm D (19.7 in W x 14.4 in H x 24.6 in D)
Enviromental
Operating temperature range (non-condensing atmosphere): –0 °C to 40 °C (32 °F to 104 °F)
Storage temperature: –20 °C to 50 °C (–4 °F to 122 °F)
Operating humidity range: Non condensing
Lighting conditions: All indoor & outdoor conditions over entire range (no lighting limitations)
Protection class: IP54

Includes;

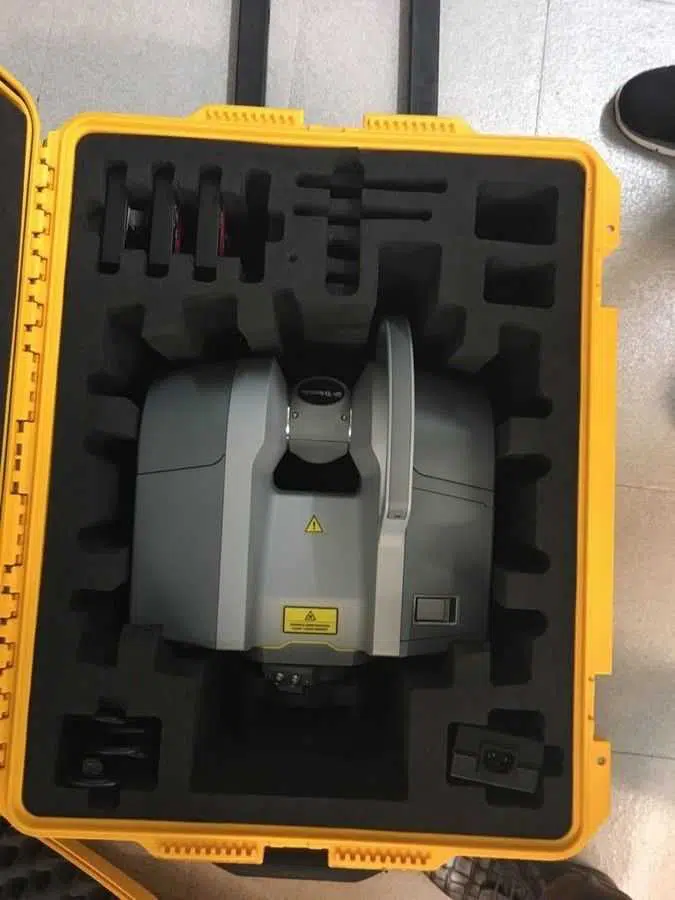

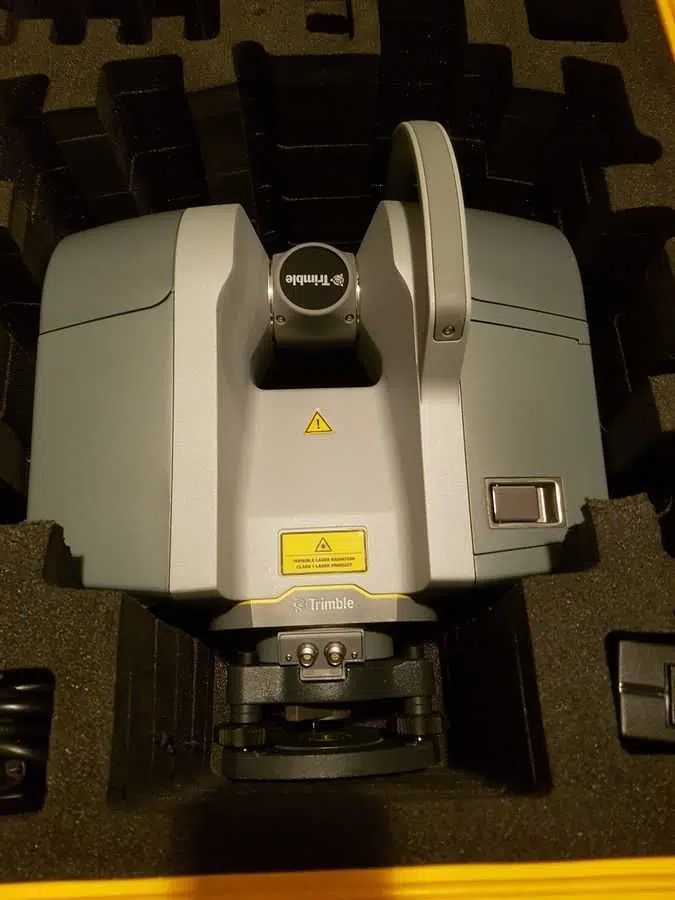

Trimble TX8 (HDR Camera & WLAN)
Trimble Realworks Advanced License
Trimble TX Battery Kit, including charger, 4 batteries, cables, and hard case
Power Supply 12V & Power Cable & Adapters
Tribrach with Optical Plummet
Tri-Max Universal Elevator Tripod
USB 3.0 Flash Drive 64GB
Trimble Stylus Lanyard
Solid GG Stylus, 1 Tether Packout Assy
Pack x10 Adhesive B&W Checker Target
Pack x2 screen protector 91.8 x 54.5mm
Lens Cleaning Cloth
Transportation case
Trimble TX8 Started Guide
2 Year Trimble Warranty
